An Ideal Elevator With Indian & Italian Technologies
About company
The idea behind forming iVATOR® is to serve multi branded products of elevator industry under one roof to the global market. iVATOR® has a team of engineers who can make GAD drawings as per the customers requirement and we give different choices of international brands for their desired project. iVATOR® elevator is manufactured by using high quality raw materials and certified components carefully sourced from the direct manufacturers located in Europe & India. Elevators supplied by iVATOR® are certified as per international quality standards and complying to local regulations.
Projects completed
Satisfied customers
Success rates
CORE PRODUCTS
WHY CHOOSE US
Do you have a non standard lift requirement get more inspiring solutions from iVATOR®
We use high quality Italian branded MONTANARI machines for all our passenger elevators and home elevators. We are specialised in providing solutions in traction MRL home lifts which has low pit and low overhead. MORIS Italy and GMV hydraulic machines are imported and used for heavy load carrying elevators and passengers elevators where there is low headroom. Our standard elevator doors are European brands such as Fermator (Spain) and Wittur (Germany) which are EN 81 certified and 120 mints fire rated.
iVATOR® elevator is manufactured by using high quality raw materials and certified components carefully sourced from the direct manufacturers located in Europe & India. Elevators supplied by iVATOR® are certified as per international quality standards and complying to local regulations. Our collaboration with leading machine manufacturers and controller manufacturers makes our elevator more reliable and affordable. Our precision designed elevators ensure long life operation and they are easy to install.
The control system of iVATOR® is one of the most powerful lift control systems in the world. The control system has been developed and customized for our elevator to cater various project specifications. We supply global leading brands such as FUJI ( Japan ), INVT, Monarch ( China ) & ARKEL ( EUROPEAN ). We have a strong technical support team who can support you for 24 x 7.
All critical safety components such as the machine, break system, safety locks, over speed governor, rapture valve and automatic door system are designed by European manufacturers. The rest of the components are from India and they have been carefully selected after extensive testing and certification.
Our product range includes high-quality Commercial Elevators, Residential Elevators, Industrial Elevators, Hospital elevators, and Dumbwaiters etc. We also supply other special products such as Scissor Lifts, Platform lifts, two post stack parking, lift security access solutions etc
Our aim is to make all our products available across the world and provide unparalleled service support throughout the life of the product. We are confident that with our commitment & dedication, we can continue growing in our area of operation. At present, we are concentrating in expanding our position in the global market by making tie-ups, collaborations with various manufacturers & Elevator installation companies across Asia, Europe and Middle Eastern Countries. This will further enable us in strengthening our position in the global market. We are only into elevator material supply and we do not involve in any direct installations to the end user.
PRODUCTS
Passenger ELEVATOR
iVATOR® ECO iGEN3 – a perfect elevator for your prestigious building.
Presenting a reliable, energy efficient and quiet way to introduce vertical transportation solution to your prestigious building, no matter how much space you have.
Looking for reliable and long-lasting vertical transportation solution to improve the reliability and efficiency of your building ? iVATOR® introducing a flexible elevator that will fit into a wide range of shafts dimensions and specifications. Its available with both machine room and machine room less models.
With impressive energy saving technology and advanced engineering designs, these models can run even quieter than a standard elevator system.
European BRAND Montanari machineries are used in the passenger elevator. This ensures high quality and long-lasting elevators available at a very reasonable price.
Due to its gearless motor and VVVF drive speed regulation technology is used, it can offer excellent stopping accuracy and riding comfort. The speed of the automatic door operation is regulated by variable voltage variable frequency drive system. It offers extremely smooth door operation.
Gearless motor and state-of-the-art inverter combined with innovative design guarantees remarkably low noise levels inside and outside the cabin. The noise level inside the cabin during the lift operation is between 52-54 dB (A).
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor where the doors automatically open as to allow the car exit.
Capacity | 320Kgs – 2000kgs |
Drive | Variable Voltage Variable Frequency Drive System. |
Machine | Montanari (Italy) Permanent Magnet Gearless Traction Machine |
Controller | FUJI / INVT / MONARCH / ARKEL controller |
Speed | 0.63 mps to 2.50mps |
Travel | Upto 100m / 32 stops |
Door | Fully automatic sliding steel door in stainless steel hairline finish. Other special finishes are available on request. |
Cabin Size | 800mm (w) x 1000mm (d) x 2200mm (h) – 2000mm (w) x 2500mm (d) x 2800mm (h) |
Door Width | 600mm – 1400mm (w) |
Door Height | 2000mm – 2400mm (w) |
Min Pit | 900mm – 1800mm |
Min Headroom | 4000mm – 5000mm |
Machine room height | 2200mm / without machine room model |

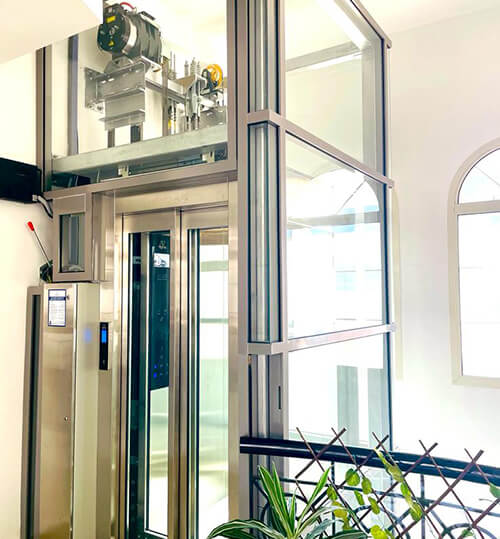

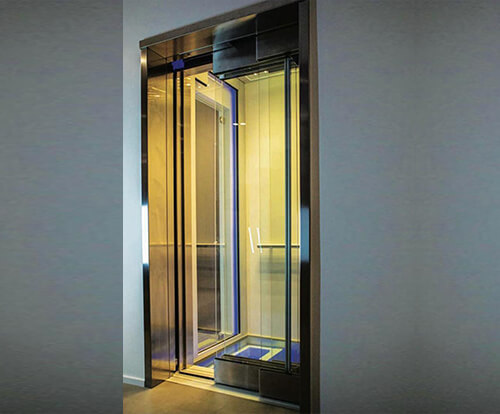

CUSTOMISED VILLA ELEVATOR
iVATOR® offers unique tailor-made home elevator solution to upgrade your space. Our home lift solution that complies with Lifts Directive 2014/33/EU or European machine directive. Installation can be customised to any architectural need and design, even special and challenging projects. It is an elegant and, above all, truly convenient solution, allowing for perfect fitting within any existing or new building.
iVATOR® home lift is the ideal solution for low pit and headroom shafts. Wheelchair friendly door and cabin dimensions and full height infrared door safety curtain ensures safe usage for both children and old aged.
European brand Montanari traction machines are used in the Home elevator. The mechanical parts including the structure and guide rails are manufactured in state of art factory. This ensures high quality and long-lasting elevators available at a very reasonable price.
Due to its gearless motor and VVVF drive speed regulation technology is used, it can offer excellent stopping accuracy and riding comfort. The door operation is available in both manual swing doors and fully automatic sliding steel door. The speed of the automatic door operation is regulated by variable voltage variable frequency drive system. It offers extremely smooth door operation.
Gearless motor and state-of-the-art inverter combined with innovative design guarantees remarkably low noise levels inside and outside the cabin. The noise level inside the cabin during the lift operation is between 52-54 dB (A).
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor where the doors automatically open as to allow the car exit.
Capacity | 320Kgs – 630kgs |
Drive | Variable Voltage Variable Frequency Drive System. |
Machine | Montanari (Italy) Permanent Magnet Gearless Traction Machine |
Controller | FUJI / INVT / MONARCH / ARKEL controller |
Speed | 0.63mps - 1 mps |
Travel | Upto 20m / 5 stops |
Door | fully automatic sliding steel door stainless steel hairline finish. Other special finishes are available on request. Or Manual swing door in powder coated finish |
Cabin Size | 600mm (w) x 800mm (d) x 2200mm (h) – 1200mm (w) x 1400mm (d) x 2300mm (h) |
Automatic door | Fermator ( Spain ) / Wittur ( Germany ) |
Door Dimension | 600mm (w) x 2000mm (h) - 900mm (w) x 2100mm (h) |
Min Pit | 300mm |
Min Headroom | 3000mm |
Machine room height | Not Required. |

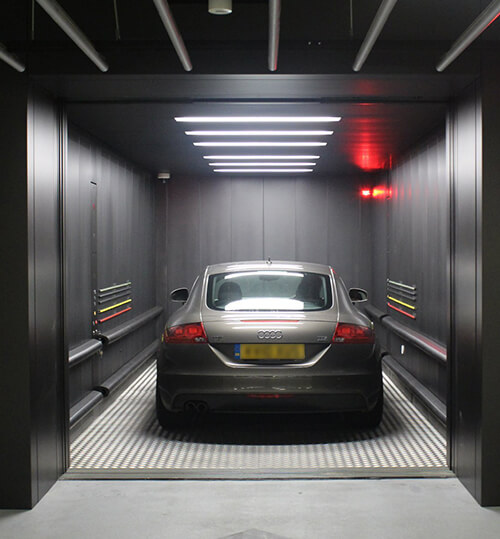

car elevator
iVATOR® Car elevator is a highly economical and robust solution from iVATOR® for heavy load carrying capacity elevators with the capacity of 3000kgs – 8,000kgs. It is one of the most economical and space saving solutions available today in the market. It is designed to offer both electric traction and hydraulic drive technology tailored as per the site dimensions and characteristic. Featuring MORIS ITALY or GMV premium hydraulic machines and Italian brand Montanari traction drives equipped with a state-of-the-art inverter that minimizes sound and ensures both outstanding ride quality and exceptionally low energy consumption.
Permanent MAGNET Gearless machines are used in the car elevators. The mechanical parts including the structure and guide rails are manufactured in state of art factory. This ensures high quality and long-lasting elevators available at a very reasonable price.
Due to its gearless motor and VVVF drive speed regulation technology is used, it can offer excellent stopping accuracy and riding comfort. The door operation is available in both vertical sliding and horizontal sliding steel door. The speed of the door operation is regulated by variable voltage variable frequency drive system. It offers extremely smooth door operation.
Gearless motor and state-of-the-art inverter combined with innovative design guarantees remarkably low noise levels inside and outside the cabin.
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor where the doors automatically open as to allow the car exit.
Parameters | Hydraulic | Traction |
---|---|---|
Capacity | 2000Kgs – 8,000kgs | 2,000kgs – 5,000kgs |
Drive | Indirect Double Piston with six guide rails design | Variable Voltage Variable Frequency Drive System with six guide rails design. |
Machine | MORIS / GMV (ITALY) Hydraulic Machine | Montanari Permanent Magnet Gearless Machine ( Italy ) |
Controller | Arkel Microprocessor controller with Star Delta | Monarch 3000 Microprocessor controller with VVVF drive |
Speed | 0.3mps to 0.5mps | 0.5mps to 1 mps |
Travel | Up to 20m | Up to 200m for 3000kgs capacity |
Door | Full Automatic vertical / horizontal sliding steel door in stainless steel or powder coated finish. | Full Automatic vertical / horizontal sliding steel door in stainless steel or powder coated finish. |
Automatic door | Fermator ( Spain ) | |
Door Dimension | 2400mm (w) x 2200mm (h) | 3000mm ( w ) x 3000mm (h) Available in 3, 4 and 6 panel |
Min Pit | 700mm | 1000mm |
Min Headroom | 3400mm | 4800mm |
Machine room height | 2200mm | 3000mm |

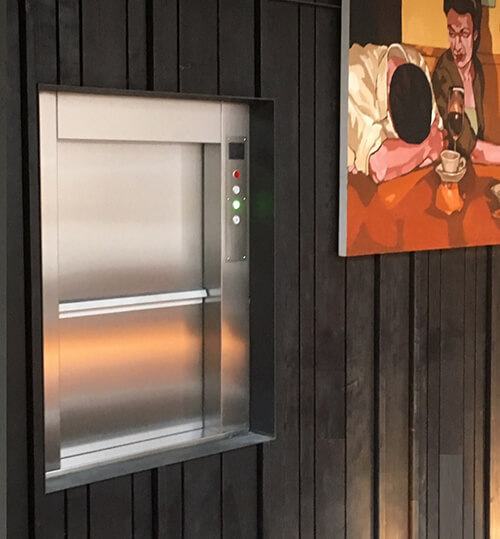

Dumbwaiters
iVATOR® dumbwaiters are a range of small service lifts designed for the vertical transport of small and medium loads and to facilitate multiple applications within the industrial and services sectors. The rigid quality controls make these service lifts lasting and reliable products.
The main advantage of this type of product is its adaptability to your specific requirements. This adaptability is achieved by offering a wide range of sizes and two different installation versions: wall-mounted or using a self-supporting structure. Moreover, both hydraulic drive (low noise level) and electrical traction drive (for travel distances greater than 8 m) are available. In addition to the above, these service lift include manufacturing features designed to optimize installation times, such as: manufacture of modular elements, prefabricated electrical installation, ready to plug in, as well as preassembly of several elements.
Vertical bi-parting door with lock and electrical security contact.
Call and send push-buttons for all level with light indicator for busy car and acoustic signal on arrival of the car.
All these components operate at low 24 V as a safety measure.
Load 50 kg to 100 kg |
Speed 0.20 M/S |
TRAVEL UP TO 12 METERS |
STOPS UP TO 4 STOPS |
Finish Stainless steel / Painted steel |

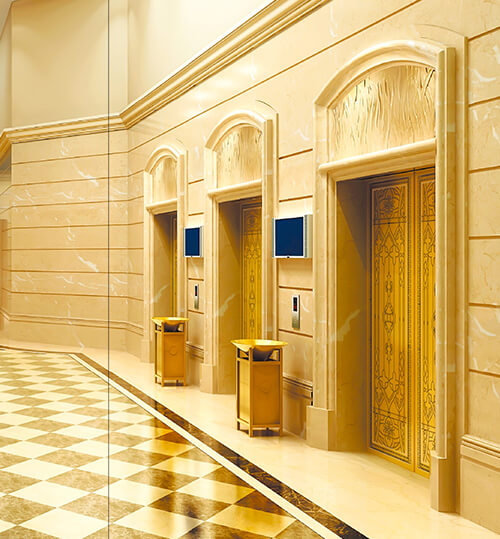

ELEVATOR DOORS
Our standard elevator doors are European brands such as Fermator (Spain) and Wittur (Germany) which are EN 81 certified and 120 mints fire rated. Fermator is a leading European mono-product manufacturer of automatic doors for elevators in the world. Fermator doors are installed worldwide for low, medium and heavy traffic duty lifts, for domestic use, offices, airports, hotels and public buildings.
The automatic doors manufactured by Fermator comply with International Standards; EN 81-20/50, ASME A17.1, GB 7588, and fire requirements EN 81-58 and UL 10B among numerous others. Door opening width are available from 600mm to 3000mm in 2, 3, 4 & 6 Panel options. Standard available door height is 2000mm and we can provide upto 3000mm.

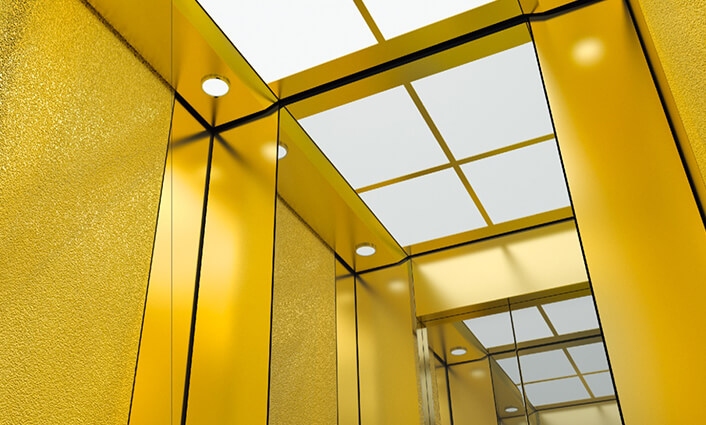

LUXURY CABINS

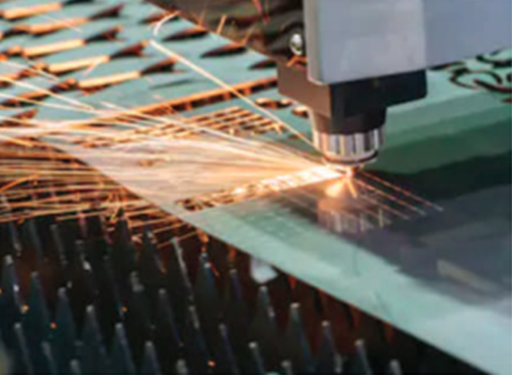

The manufacturing process is carried out with CNC automatic machines, the quality of the materials, the constant checks of the manufacturing cycle and the design with modern software allow to manufacture of high reliable standard and special elevator Cabins.
Available in different shades & Grades. Finishes like MS Powder coated, SS hairline, Mirror finish, SS Golden finish, Wooden finish etc with etching and also complete Glass cabins are available. We can also provide custom etching design pattern as per your desire.
SPARE PARTS
iVATOR® is India’s leading, independent provider of spare parts for all types of elevators. We can provide you with thousands of current spare parts of all leading manufacturers from our Mumbai warehouse to anywhere around the globe.
iVATOR® solutions are innovative, set technical standards and save our customers valuable time when searching for spare parts. Our team is made up of experts who support our customers with extensive experience and know-how. Our reliable and fast spare parts logistics systems ensures our customers have no worries when it comes to ordering spare parts.

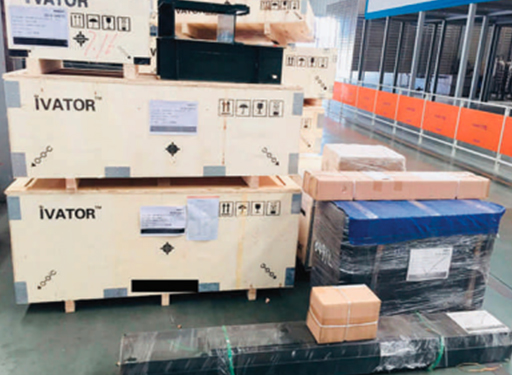

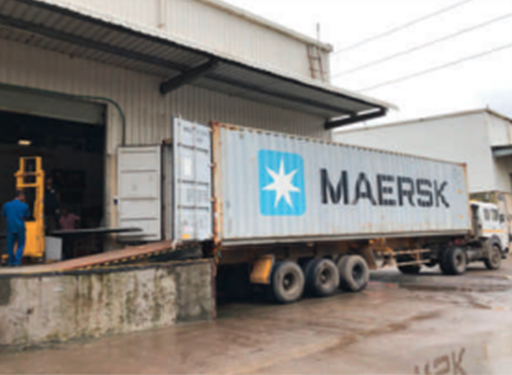

product delivery
iVATOR® elevator is manufactured by using high quality raw materials and certified components carefully sourced from the direct manufacturers located in Europe & India. Elevators supplied by iVATOR® are certified as per international quality standards and complying to local regulations.
Each of our products deliveries are committed to the high, accurate service quality of the elevator sector and represents a module which ideally enhances the professional performance of our customers.
iVATOR® deliberately relies on the strengths of a family business. Motivated and committed staff, high reliability and a clear set of values typify the company Fair cooperation is the most important precondition for partnership with our customers, suppliers and staff.
